Waffle model created using grasshopper and 'bowerbird' plug-in. Renders done in v-ray from Rhinoceros 5.0. Building located at 945 Madison Ave, New York, the original location of the Whitney Museum of American Art, now the Met Breuer.

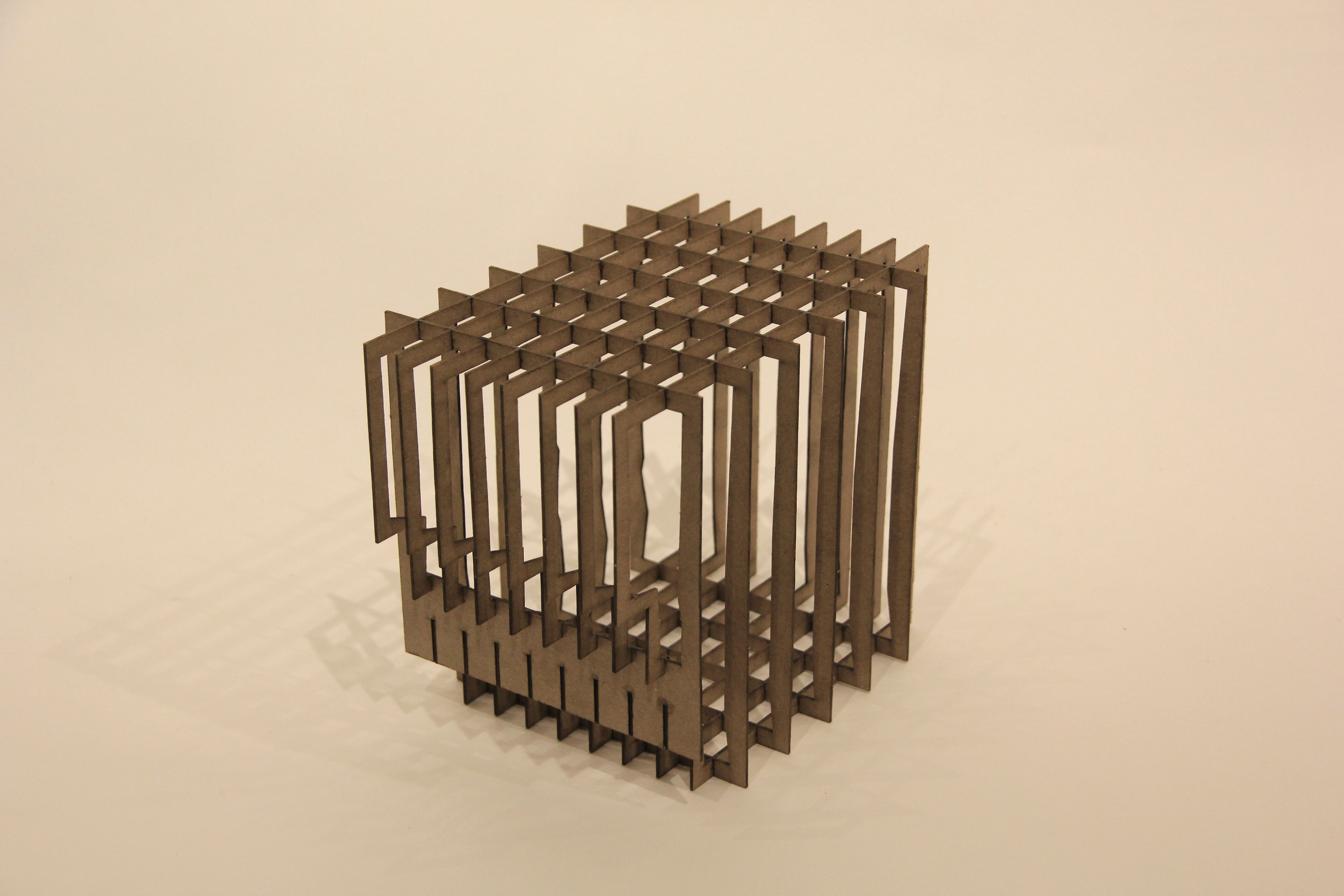

Constructed waffle model, in laser cut chipboard.
Screenshot of geometry after it was baked from the grasshopper definition.
Simplified grasshopper definition for waffle generator, from Explode BReps (click on image for link to website).

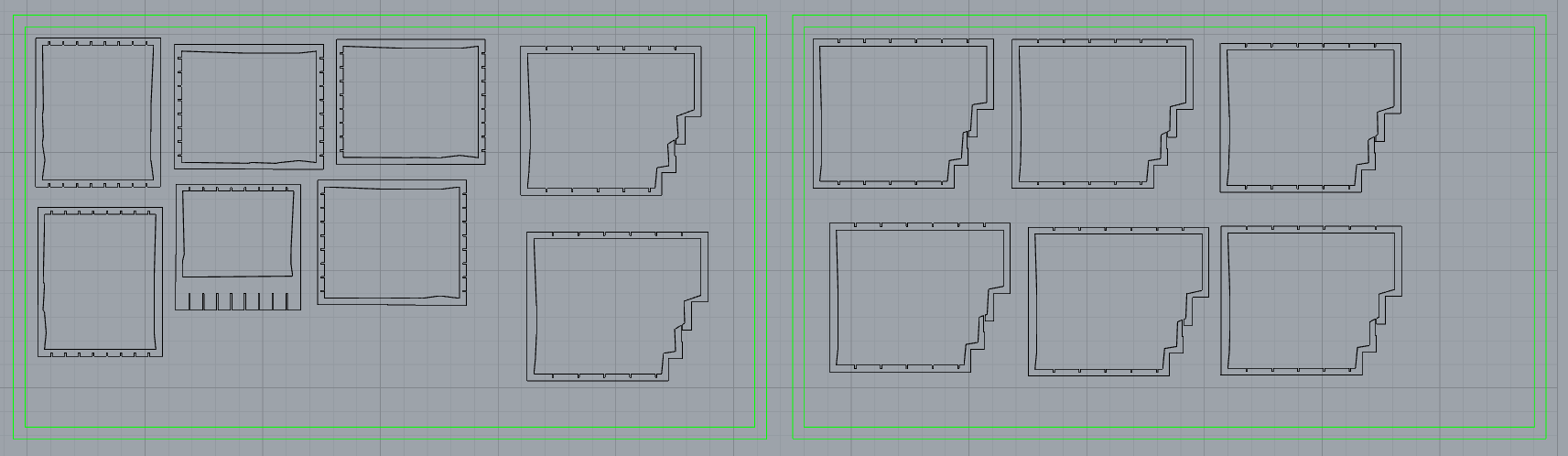

Pieces aligned for laser cutter in Rhino interface.
VRay output of building after being extensively recreated in Rhino. Material bitmapped as surface overtop geometry.
